High Concentrate Mixing Station
High Concentrate Mixing Station
🌟 Suitable for Chemitek Solar CRA & MRA
🌟 Easy to use, works on water pressure
🌟 High mixing ratio 1:3 to 1:1
🌟 Equal dosage regardless of water pressure
🌟 Resistant to acids & alkaline chemicals
🌟 If not in stock: delivery time 5 to 7 weeks!
Couldn't load pickup availability
High Concentrate Mixing Station
Order before 3:00 PM, receive your order on - for Belgium or - for the Netherlands.
Operation & Features
How does the High Concentrate Mixing Station work

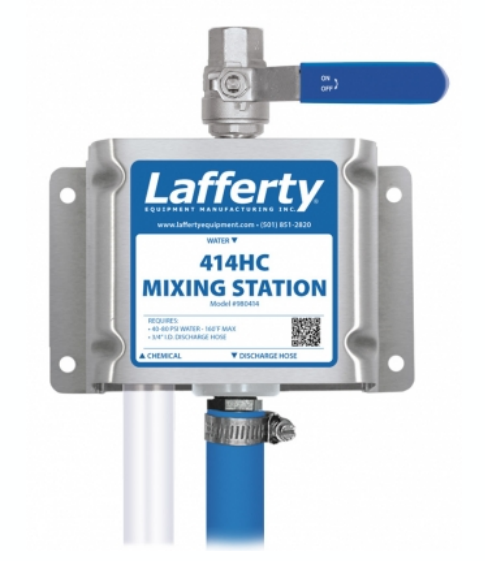

The 414HC Mixing Station has a water flow rate of 4 GPM @ 40 PSI and is a "highly concentrated" chemical proportioner for strong solution cleaning. This venturi injection system uses city water pressure (40 - 80 PSI) to draw and mix a high concentration of chemicals into the water to create a dilution ratio of up to 1:1. The activation of the ball valve enables hands-free dosing.
High Concentrate Mixing Station Features
- Achieves strong dilution ratios, up to 1:1 (with water-thin chemicals)
- Water flow rate of 4 GPM @ 40 PSI for filling containers or equipment of any size
- Eliminates manual mixing and optimizes chemical use, employee safety and labor efficiency
- The activation of the ball valve allows hands-free dosing
- Chemically resistant, wetted components provide years of excellent performance with minimal maintenance
- The industrial design holds up in tough conditions
- Suctions chemical concentrate from containers of all sizes
What is included
- Stainless steel mounting bracket
Stainless steel inlet ball valve - Machined injection body made of polypropylene
- 2 dosing plugs to set dilution ratios
- 10' open drain hose
